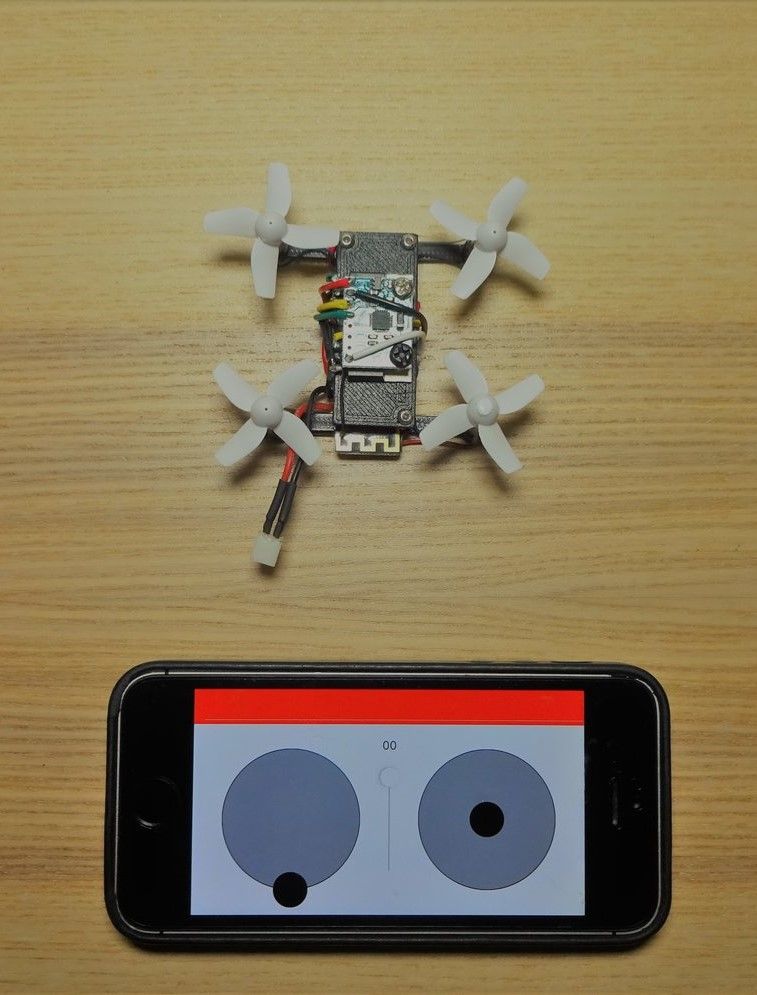

DSC00395 Sahara.jpg

Arduino Quady

Arduino-based Quadcopter with iOS App

Motor On Preview

Arduino Quady is my attempt to built a mini quadcopter controlled by iOS device through bluetooth. Arduino controls each motor using MOSFET and receives positional data through gyroscope module.

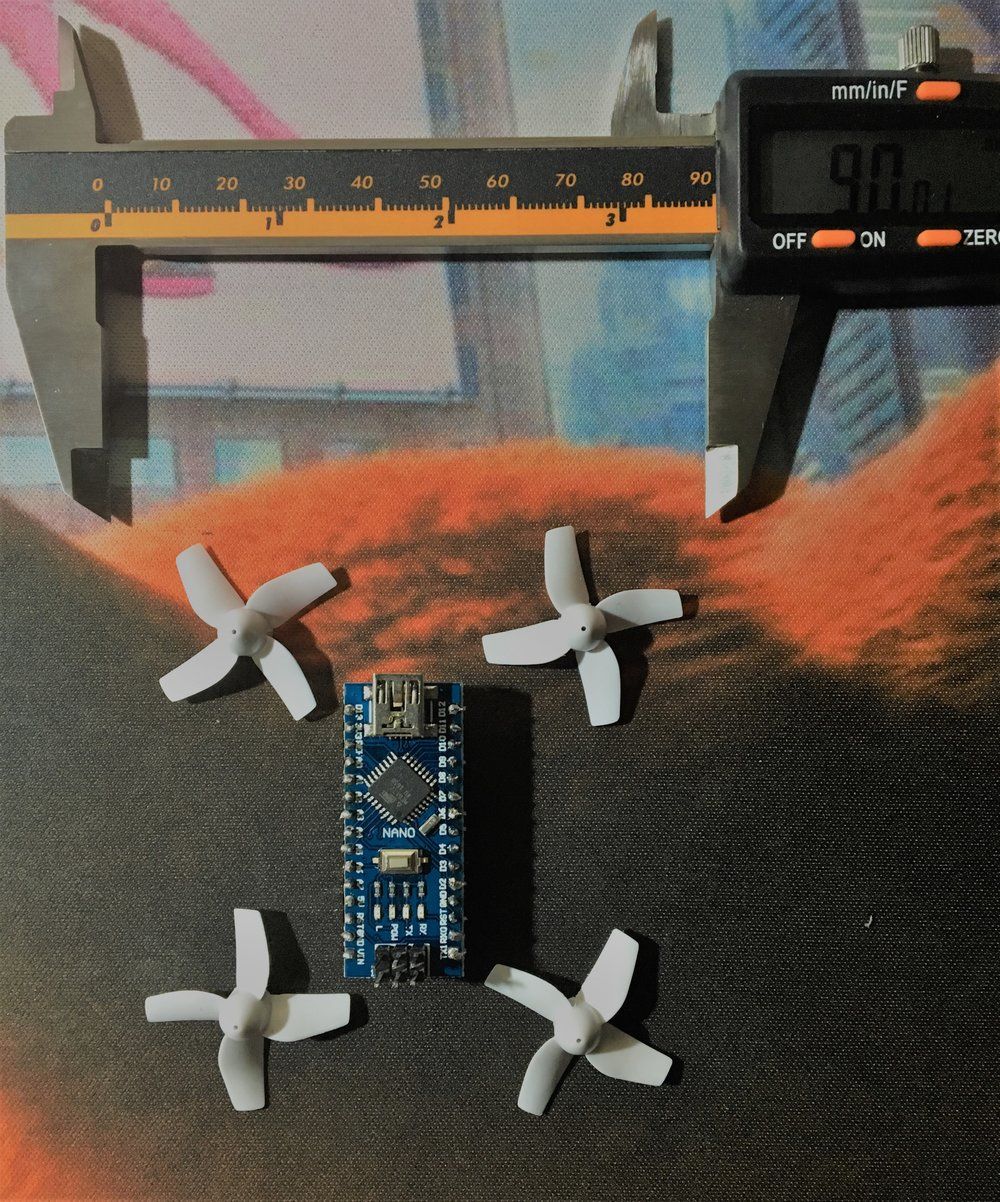

Size of The Mini Quadcopter

Size of The Mini Quadcopter

The small size, along with cheap and inaccurate MOSFET and gyroscope, would eventually lead to its inability to fly like other quadcopter on the market.

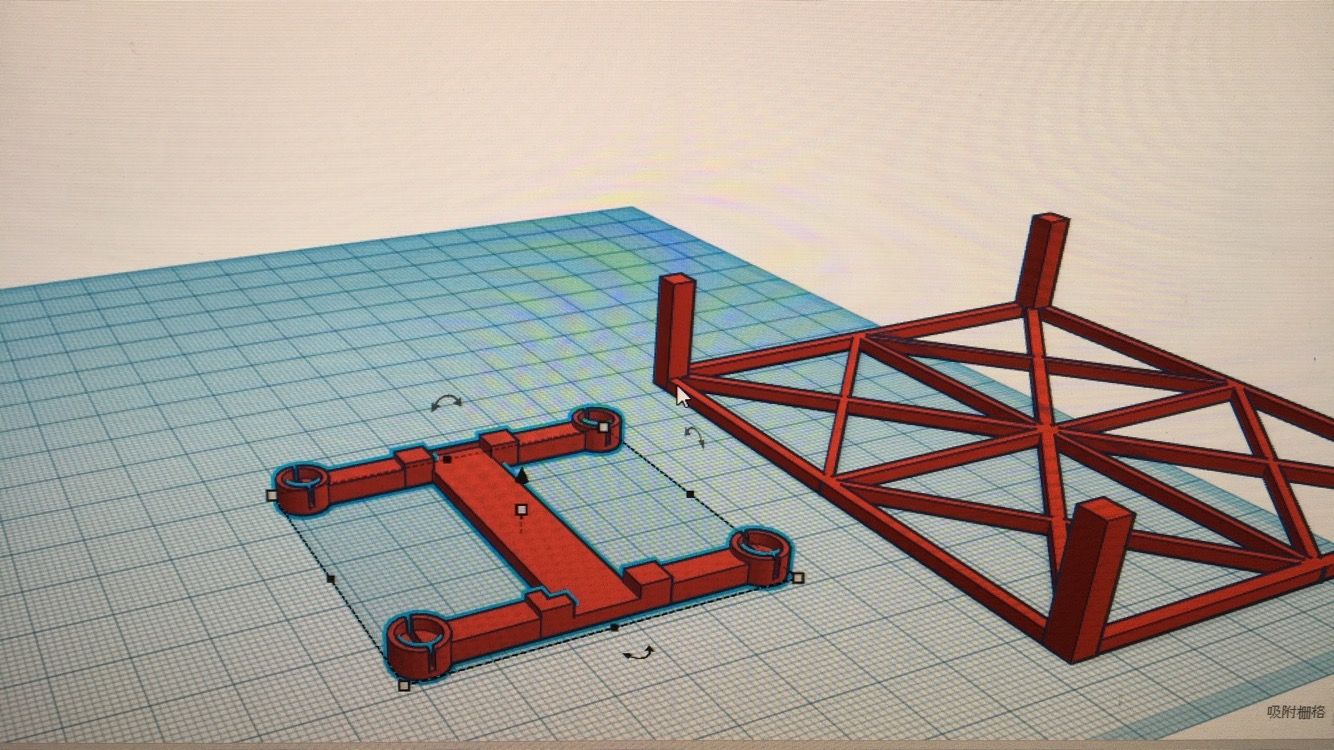

Frame on Tinkercad

Frame on Tinkercad

I designed the frame in a minimalistic way so that the Arduino can fit in neatly and that towers of sensors can be built on top.

Testing MOSFET

Arduino directly controls the current draw of each motors through MOSFETs. These little modules carry out similar function to ESC(Electric Speed Control) on larger quadcopters on the market.

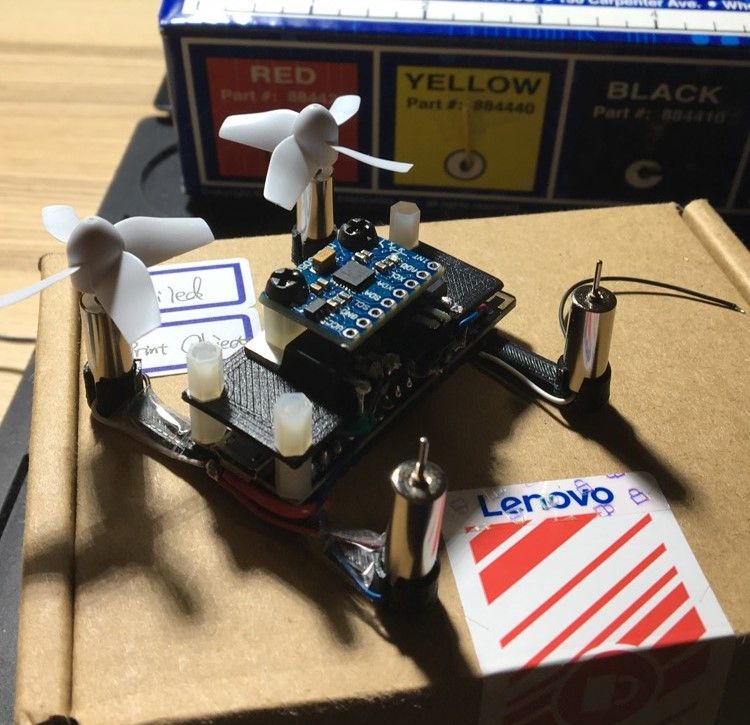

Assembling

Assembling

Motors are fitted into the seats with hot glues. However, as later testing suggest, the motors might come off as they get hotter during flight and melt the glue.

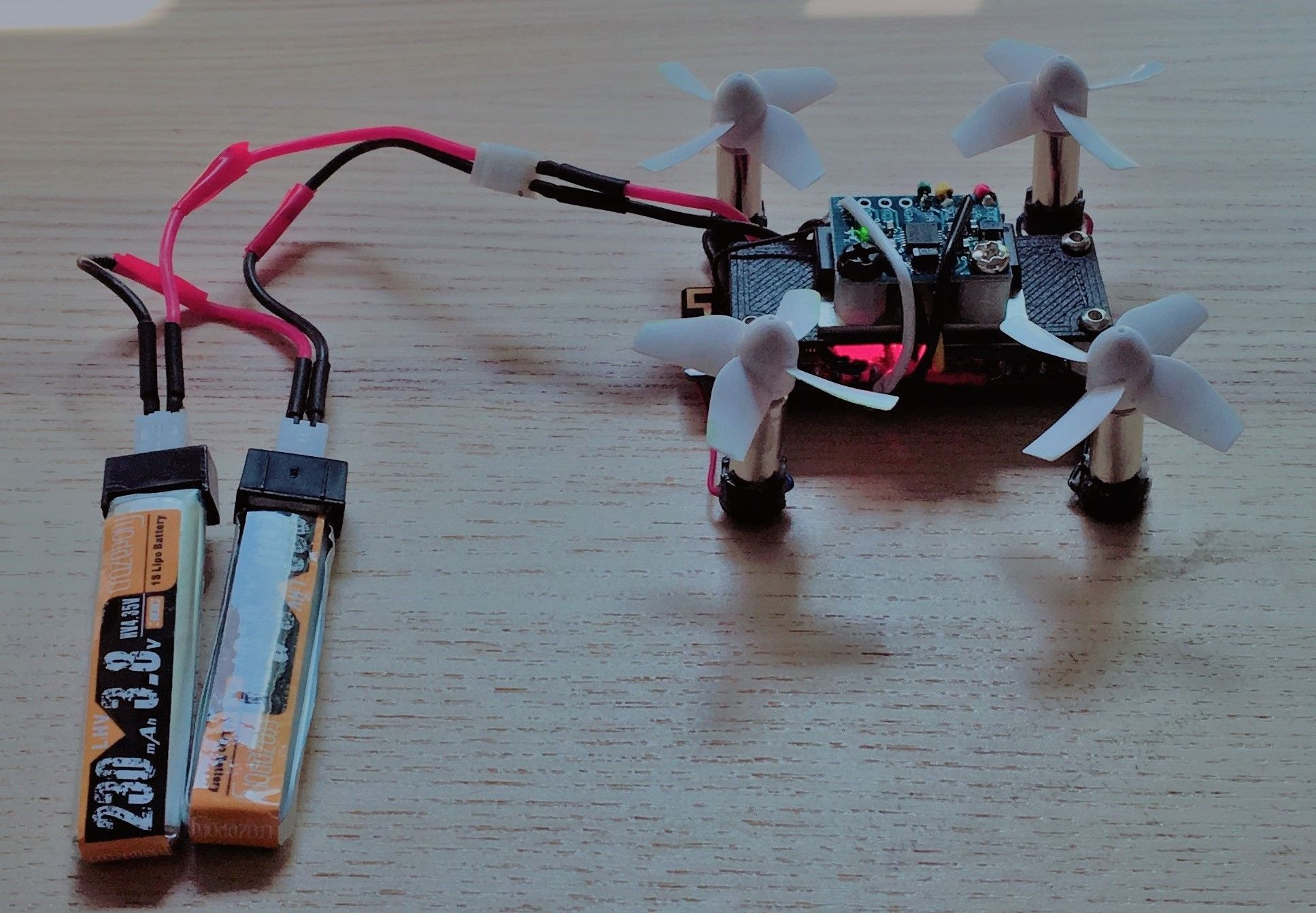

Parallel Battery Connected

Parallel Battery Connected

The batteries provide strong current to the motors. But their bulky size isn’t desirable for aesthetics and agility of the quadcopter.

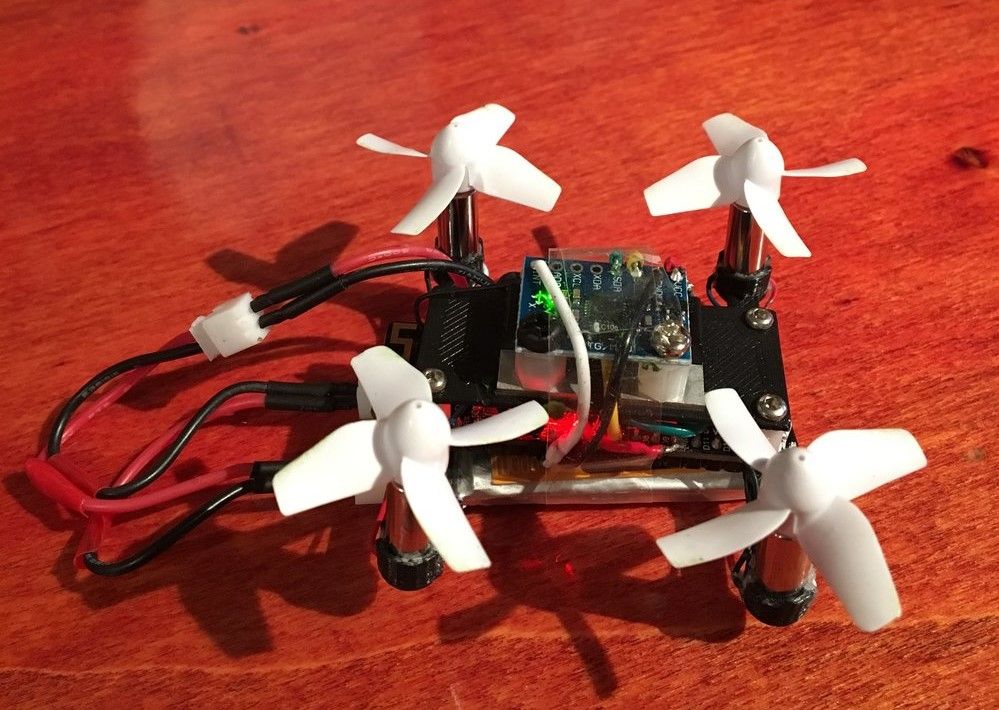

Final Product

Final Product

The quadcopter failed to stabilize in air but was more than powerful enough to take off. I started looking into customized integrated circuit on Autodesk EAGLE after this project as I discover that the minimization of wires is key to projects that are required to be as light and simple as possible.
